e-fujiyama startup set (3rd model)
e-fujiyama startup set (3rd model)
e-fujiyama startup set (3rd model)
e-fujiyama startup set (3rd model)

e-fujiyama startup set (3rd model)

Wireless sensor and terminal set to startup using e-fujiyama system which monitors facilities in factories with 920MHz wireless temperature and vibration acceleration sensor at all time to avoid factory shutdowns.

Vendor Name: Nippon Paper Unitec Co., Ltd.

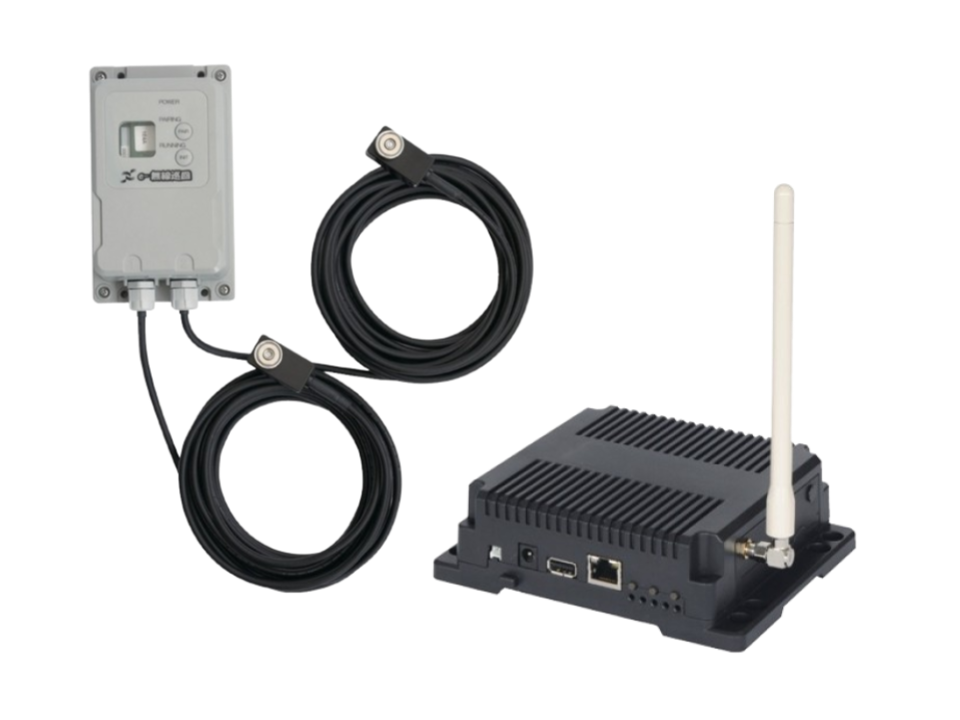

Set content:

  •  Wireless terminal (EFJ-M002) x 1
  •  Wireless sensor (EFJ-S002) x 1

Download Leaflet

Download manual

Description

Wireless terminal (EFJ-M002) device for e-fujiyama system which monitors facilities in factories with 920MHz wireless temperature and vibration acceleration sensor at all time to avoid factory shutdowns.

Model number: EFJ-M002

Vendor Name: Nippon Paper Unitec Co., Ltd.

Specification:

  • Power supply: AC 100 - 240 V
  • Wireless communication: 920MHz specified low power radio(920.6MHz～923.4MHz)
  • Measurement cycle: Choice of per 3mins, 5mins, 10mins, 15mins, 60mins
  • Communication distance *1: Indoor about 100 m, outdoor about 1 km
  • Maximum number of Sub units (per master unit):
    Measurement cycle <Per 3mins> 30 unit
    <Per 10mins>: 100 unit<Per 60mins> 600 unit
  • Maximum number of master units (system maximum): 20 units/system (max of 12,000 Sub units *3)
  • Installation environment *2: -10 ℃～60 ℃
  • External dimensions: 155.8 mm × 125.8 mm × 47 mm (excluding the antenna part)
  • Weight: 250 g (excluding AC adapter)
  • NBTC SDoC applied

*1: This is a clear and straight distance. It may vary depending on the surrounding environment.
*2: Applicable only in environments without corrosive gases.
*3: If the master unit installation area is in close proximity, the maximum number of master units will be 7 and the maximum number of sub units will be 4200.

Wireless sensor (EFJ-S002) device for e-fujiyama system which monitors facilities in factories with 920MHz wireless temperature and vibration acceleration sensor at all time to avoid factory shutdowns.

Model number: EFJ-S002

Vendor Name: Nippon Paper Unitec Co., Ltd.

Sub unit (Sensor box)

  • Power: Single battery × 2
  • Wave signal: 920MHz specified low power radio(920.6MHz～923.4MHz)
  • Battery replacement cycle: About 3 years at 3 minutes cycle (depending on the installation environment of the handset)
  • Installation environment *2: About 0℃～40℃ Dustproof and waterproof specification (IP67)
  • External dimensions: 108mm×178mm×74mm
  • Weight: 650g (Including single battery)

Sub unit (Sensor part)

  • Sensor: IC type temperature sensor / MEMS IC type 3 axis acceleration sensor 2 unit
  • Cable: 5 m (standard) 2 pcs
  • External form: Diameter 22 mmφ height 30 mm M6 screw with neodymium magnet
  • Installation environment: About -40℃～105℃

Sub unit (Tempter Sensor part)

  • Range of measurement: -40 ℃～105 ℃

Sub unit (Acceleration Sensor part)

  • Frequency band: X, Y axis 2.6 KHz, Z axis 600 Hz
  • range of measurement: -16～16G
  • Measurement calculation value Peak value, RMS value, crest factor value
